400V single phase PCB welding synchronous transformer

Unit Price: 2.1~2.6 USD
Min. Order: 5 Piece/Pieces

Product Description

Epoxy Resin Encapsulated Single-phase Synchronous transformer DTB Series

Model: DTB3515                             Power : 3.5VA


1.DTB3515 single-phase synchronous epoxy potting Transformer has beautiful appearance


and its circuit board welding may replace similar products at home and abroad.

2.It adopts totally enclosed circuit board direct welding; the secondary output is leaded out


by weld leg; the strong electricity input and weak electricity output are separated.





  • Applied to silicon controlled power, voltage & speed governing and synchronizing signal detection
  • Sampling resistance


Technical indexes

1. Environment conditions:

   Operation temperature: -25℃~+50

   Storage temperature: -25℃~+80

   Relative humidity: less than 95%

   Height above sea level: lower than 1000M

2. Safety property:

   Dielectric strength: 3500V/1min.

   Fire resistance property: in accordance with UL94-V0

   Insulation resistance: over 500MΩ

3. Overload capacity: 3 times/1min.

4. Rated frequency: 50-60Hz

Outline size(mm)

400V single phase PCB welding synchronous transformer



400V single phase PCB welding synchronous transformer

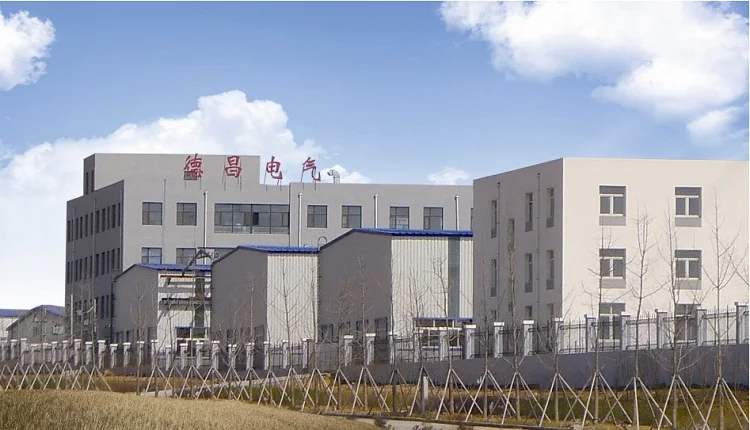

Our factory





Our company was founded in 1992. We mainly produce power transformer, currrent transformer, hall effect sensor, trigger transformer and common mode chock.

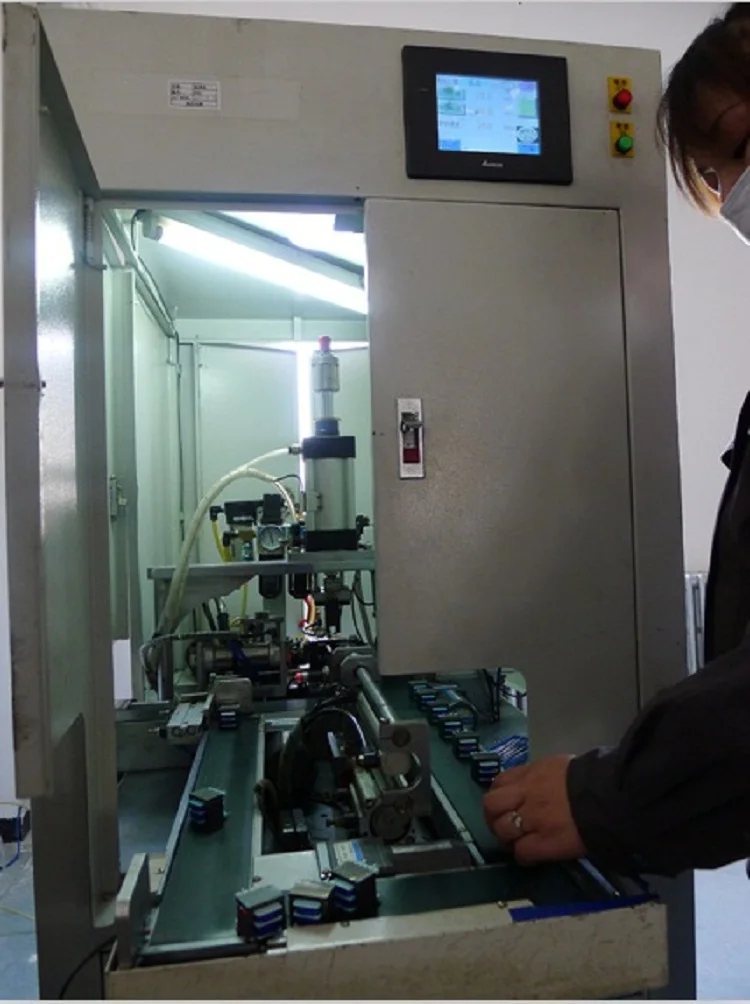

Our factory covers over 12,000 square meters, including 4 workshops. We have more than 100 sets automatic wire winding machine. So we can achieve mass production and short time delivery.

Our products have got CE, ROHS, CQC certificate. The quality is guaranteed. At the same time, we promise low price and regular supply.


Contact us if you need more details on Single Phase Transformer. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Synchronous Transformer、Synchron Transformer. If these products fail to match your need, please contact us and we would like to provide relevant information.
