New Products
| Min. Order: | 1 Piece/Pieces |
|---|
Key Properties:1. Inherit the simple structure of the traditional C cores2. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.3. Comparing Other materials, with high accuracy, due to nanocrystalline high permeability.4. Energy conservation & environment protection, huge potential marketMain Application:Our Split-core current Transformer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Which is widely used for:· Current Measurement· Electrical loading monitoring· Energy and sub-metering products· Network equipment· Instruments and sensors· Control System· Go GREEN initiatives
| | |
No | Item | Specification |
1 | Rated Input Current | AC 10A |
2 | Maximum Output Current | AC 20A |
3 | Rated Output Current | -20 0C~500C |
4 | Rated Accuracy Error | 1% |
5 | Linear Range | 5%In~120%In |
6 | Frequency | 1000 Hz |
7 | Terminal cable | L=2000mm |
8 | Waterproof Class | IP67 |
9 | Working Temperature | -20 0C~500C |
2. Our workshop produce form Split Core, to Split current Transformer

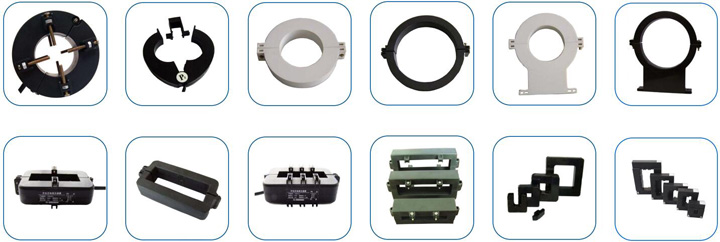

3. Customised Size as request. Our Common Standard CTs & dimentions for your first reference as below:
We can design & produce goods based on specifications & drawing, specification needed including:1. Bare core size, Size finished, special Min. Hole size.2. Split CT Turns ratio, accuracy Coilcore - Guangzhou Amorphous Electronic Technology Co.,ltd., established in 2009, our core competence is Nanocrystalline Core & Amorphous Core & Ferrite Core.
Manufacture:
Certificates:
Safe Package:
Contact us if you need more details on Split Core Dc Current Sensor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Clamp Type Current Transformer、Lock Type Core Split Current Transformer. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Transformer and Inductor > Split Core Current Transformer
