200V-1000V plate type crimp terminal output hall effect voltage sensor

Unit Price:	14.88~17.5 USD
Min. Order:	20 Piece/Pieces

Product Description

200V-1000V Plate Type Crimp Terminal Output Hall Effect Voltage Sensor Model:HV25-P Plate type Characteristic
For DC , AC , pulse current detection
HV type stands for voltage output, full scale value is 5V.
HIV type stands for current output, full scale value is 25 mA
By changing the resistance which in parallel with the output end can get different voltage. Dielectric strength: 2.5kV(between input/output)
Fire resistance property: in accordance with UL94-VO
Work temperature : 0℃~+70℃
Storage temperature: -25℃~+85℃

Outline size(mm) 200V-1000V plate type crimp terminal output hall effect voltage sensor

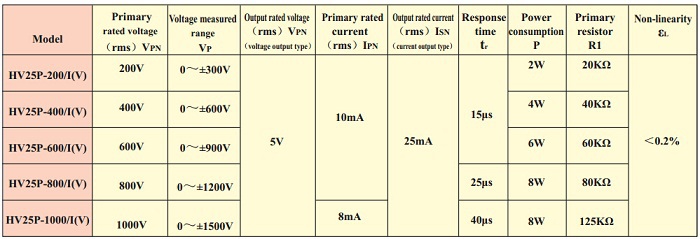

Technical parameter 200V-1000V plate type crimp terminal output hall effect voltage sensor

Specification 200V-1000V plate type crimp terminal output hall effect voltage sensor

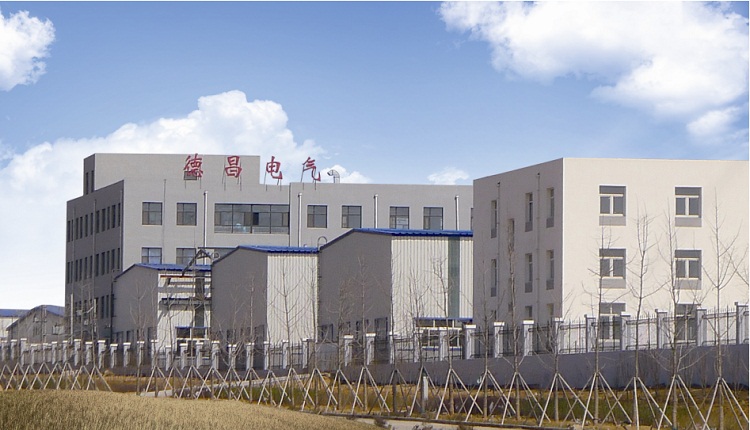

Our factory 200V-1000V plate type crimp terminal output hall effect voltage sensor

Winding workshop 200V-1000V plate type crimp terminal output hall effect voltage sensor

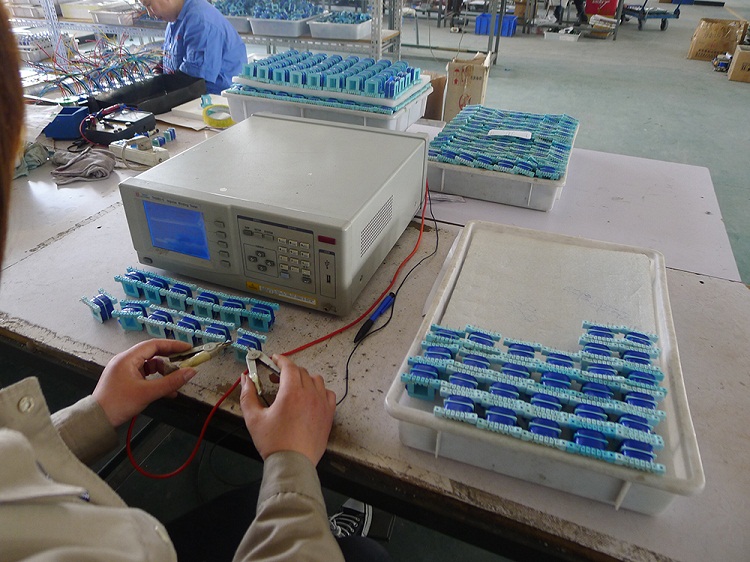

Testing after winding 200V-1000V plate type crimp terminal output hall effect voltage sensor

Silicon steel sheets are welded 200V-1000V plate type crimp terminal output hall effect voltage sensor

Vaccum epoxy resin encapsulating 200V-1000V plate type crimp terminal output hall effect voltage sensor

Certificate 200V-1000V plate type crimp terminal output hall effect voltage sensor

Exhibition 200V-1000V plate type crimp terminal output hall effect voltage sensor

Beijing yaohua dechang electronic co.,ltd was founded in 1992 and has been focused on encapsulated power Transformer, current transformer and hall sensor ever since. We take vaccum epoxy resin encapsulating and high temerature treating in producing. Till 2015, after more than 20 years researching and advance, we are on top of the same industry in China. Our factory covers 12,000 square meters , including 4 workshopes, 5 full automatic product line, more than 100 sets automatic wire winding machine and sufficient test machinery.

Contact us if you need more details on Voltage Sensor. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Hall voltage sensor、Hall Effect Voltage Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
