0-500V/5V Hall Effect And Magnetic Compensation Voltage Sensor With Built-in Resistor Model:HV4117TB Plate type Characteristic Principle of hall effect and magnetic compensation
Plate type installation; Voltage output type
With built-in resistor. Detecting the primary loop voltage directly 1.Safety feature: Fire resistance property in accordance with UL94-VO
2.Dielectric strength: primary/secondary2500VAC/1min 5mA
3.Work frequency: 0-20KHz
4.Work temperature: -40℃-80℃ 5.Storage temperature: -40℃-100℃
6.Power consumption: 10mA+IM
7.Power voltage: ±12V~±15V
Outline size(mm)

Technical parameter

Specification

Our factory

Winding workshop

Testing after winding

Silicon steel sheets are welded

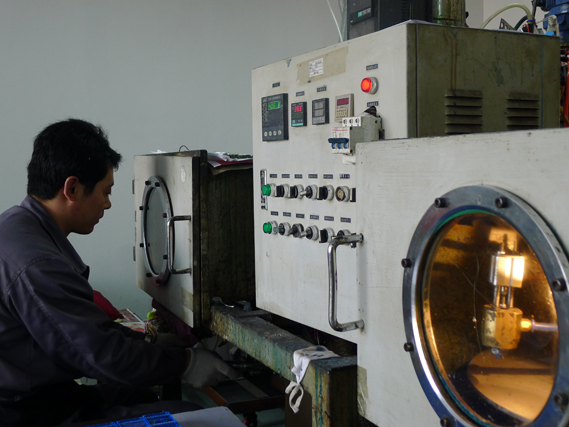

Vaccum epoxy resin encapsulating

Certificate

Exhibition

Beijing yaohua dechang electronic co.,ltd was founded in 1992 and has been focused on encapsulated power
Transformer, current transformer and hall sensor ever since. We take vaccum epoxy resin encapsulating and high temerature treating in producing. Till 2015, after more than 20 years researching and advance, we are on top of the same industry in China. Our factory covers 12,000 square meters , including 4 workshopes, 5 full automatic product line, more than 100 sets automatic wire winding machine and sufficient test machinery.
Contact us if you need more details on
Hall voltage sensor. We are ready to answer your questions on packaging, logistics, certification or any
Other aspects about Plate-type Installation、Hall Voltage Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
