55A/50mA Closed Loop
Hall current sensor/ DC AC Pulse Current Measuring Model:HA55 Rated input:55A Output:50mA Characteristic Closed loop hall circuit, window size 15*7mm, circuit board welding type installation;to measure DC, AC and pulse current. Work frequency : DC-20KHz Dielectric strength: 2500V AC/1 min
Fire resistance property: in accordance with UL94-VO
Work temperature: -40℃~+85℃
Store temperature: -40℃~+90℃
Outline size(mm)

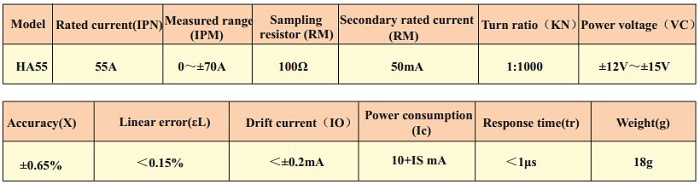

Technical parameter

Specification

Our factory

Winding workshop

Testing after winding

Silicon steel sheets are welded

Vaccum epoxy resin encapsulating

Certificate

Exhibition

Beijing yaohua dechang electronic co.,ltd was founded in 1992 and has been focused on encapsulated power
Transformer, current transformer and hall sensor ever since. We take vaccum epoxy resin encapsulating and high temerature treating in producing. Till 2015, after more than 20 years researching and advance, we are on top of the same industry in China. Our factory covers 12,000 square meters , including 4 workshopes, 5 full automatic product line, more than 100 sets automatic wire winding machine and sufficient test machinery.
Contact us if you need more details on Closed Loop Current Sensor. We are ready to answer your questions on packaging, logistics, certification or any
Other aspects about Current Sensor、Hall Current Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Hall current/voltage sensor > Hall current sensor
