High Current EMC Nanocryataline Core Toroidal Common Mode Choke Coil

Unit Price:	10~30 USD
Min. Order:	100 Piece/Pieces

Product Description

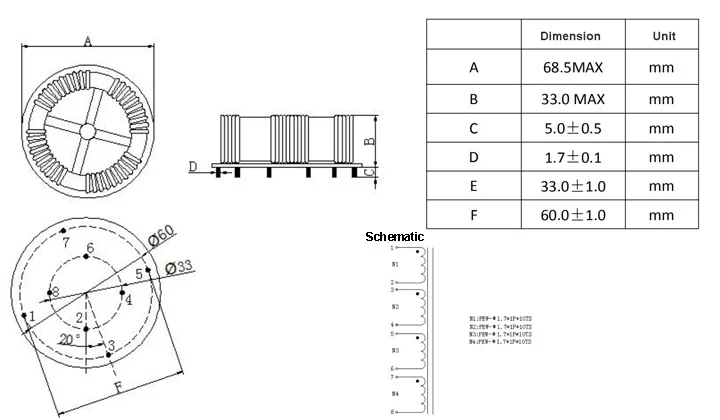

Drawing & details size: High Current EMC Nanocryataline Core Toroidal Common Mode Choke Coil

Electrical performance (Test temperature: Indoor 25°C)

Details	Windings	Sepcificaiton request	Test Condition	Test Machine
L(mH)	N1=N2=N3=N4	5.0 Min	10KHZ/0.25V	X28526
DCR(mΩ)	N1=N2=N3=N4	8 Max	25°C	TH2512B
HIPOT	N1,T0 N2,N3,N4	1800V	60HZ 3S	TH9201
Work Temperature	-25 ~ 125°C

Key Properties: 1. High permeability µi (200KHZ), high L and impedance Z in the high frequency range 2. High saturation flux density (1.2T) 3. High curie temperature (580 °C) and excellent temperature characteristics 4. Low remanent flux density Br with DC-tolerance

		Nanocrystalline	Mn-Zn ferrite
Initial Permeability @ 100KHz µr'	20°C	16000	5300
Initial Permeability @ 100KHz µr'	100°C	16300	7000
Imppeadance permeability @ 100KHz µr'	20°C	25700	5300
Imppeadance permeability @ 100KHz µr'	100°C	26300	7000
Saturation magnetic flux density Bs* (T)	20°C	1.35	0.44
Saturation magnetic flux density Bs* (T)	100°C	1.3	0.27
Residual magnetic flux density Br* (T)	20°C	0.81	0.1
Residual magnetic flux density Br* (T)	100°C	0.73	0.06
Corrective Force Hc* (A/m)	20°C	1.3	8
Corrective Force Hc* (A/m)	100°C	1.4	4.9
Curie Temperature Tc (°C)		570	150
Saturation magnetstriction λs(x10-⁶)		+2.3	-1.1
Electrical resistivity ρ (µΩcm)		1.1	10x10⁶
Density d(kg/m³)		7.4x10³	4.85x10³
* DC magnetic properties @ 800A/m

Covering Type: 1 - phase CMCs; 3 - phase CMCs; 4 - Fold CMCs High Current EMC Nanocryataline Core Toroidal Common Mode Choke Coil

Main Application: · EMC filters · Home Application · Switched -mode power supplies (SMPS), Power supplies · Solar inverters · Uninterruptable power supplies (UPS) · Welding equipment · Wind generators · Frequency converters High Current EMC Nanocryataline Core Toroidal Common Mode Choke Coil

Customised size is acceptable, our Common Standard for your first reference as below:
High Current EMC Nanocryataline Core Toroidal Common Mode Choke Coil

We can design & produce goods based on specifications & drawing, specification needed including: 1. Bare core size, Size finished 2. Al requirement @ different frequency High Current EMC Nanocryataline Core Toroidal Common Mode Choke Coil

Contact us if you need more details on Emc Nanocrystalline Core. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Common mode choke Coil、Emc Nanocrystalline. If these products fail to match your need, please contact us and we would like to provide relevant information.
