Find Emc Filter Design Common Mode Choke, Common Mode Choke Core, High Current Common Mode Choke For Inductor on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.
New Products
| Unit Price: | 10~30 USD |
|---|---|
| Min. Order: | 100 Piece/Pieces |
Product Description
Key Properties: 1. High permeability µi (200KHZ), high L and impedance Z in the high frequency range 2. High saturation flux density (1.2T) 3. High curie temperature (580 °C) and excellent temperature characteristics 4. Low remanent flux density Br with DC-tolerance |
| Nanocrystalline | Mn-Zn ferrite | |
| Initial Permeability @ 100KHz µr' | 20°C | 16000 | 5300 |
| 100°C | 16300 | 7000 | |
| Imppeadance permeability @ 100KHz µr' | 20°C | 25700 | 5300 |
| 100°C | 26300 | 7000 | |
| Saturation magnetic flux density Bs* (T) | 20°C | 1.35 | 0.44 |
| 100°C | 1.3 | 0.27 | |
| Residual magnetic flux density Br* (T) | 20°C | 0.81 | 0.1 |
| 100°C | 0.73 | 0.06 | |
| Corrective Force Hc* (A/m) | 20°C | 1.3 | 8 |
| 100°C | 1.4 | 4.9 | |
| Curie Temperature Tc (°C) | 570 | 150 | |
| Saturation magnetstriction λs(x10-6) | +2.3 | -1.1 | |
| Electrical resistivity ρ (µΩcm) | 1.1 | 10x106 | |
| Density d(kg/m3) | 7.4x103 | 4.85x103 | |
| * DC magnetic properties @ 800A/m | |||
Main Application: · EMC filters · Home Application · Switched -mode power supplies (SMPS), Power supplies · Solar inverters · Uninterruptable power supplies (UPS) · Welding equipment · Wind generators · Frequency converters

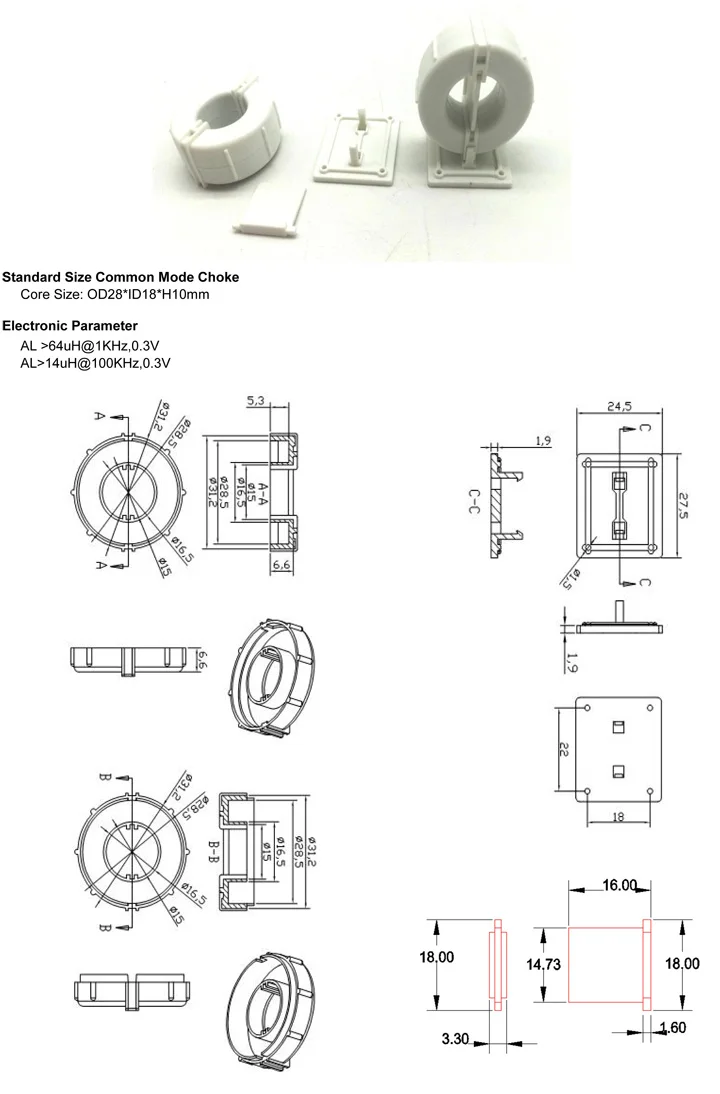

Customised size is acceptable, our Common Standard for your first reference as below:
We can design & produce goods based on specifications & drawing, specification needed including: 1. Bare core size, Size finished 2. Al requirement @ different frequency Company Information
Contact us if you need more details on Emc Filter Design Common mode choke. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Common Mode Choke Core、High Current Common Mode Choke For Inductor. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Common mode choke
