LN series
Common mode choke Model:LN142
Purpose: used for switch power supply, to suppress common mode interference signal.
Characteristics:
1) current range: 0.5A to 6 A
2) inductance: 1.8 to 82mH
3) commonmode resonance frequency: 100KHz to 3MHz
Operating ambient:
1) work voltage (max.): 250V (at40℃ )
2) frequency rangeof work power supply: DC to 1KHz (at 40℃ )
3) operating temperature: -20℃~+100℃
4) storage temperature: -20℃~+100℃
5) permissible shock current: 20 times of rated current (10ms)
Safety indexes: 1) between two coils: 1500V AC/1min.
2) between coil and housing: 4000VAC/1min.
3) Fire resistance property: in accordance with UL94-VO Outline size diagram: (in mm)

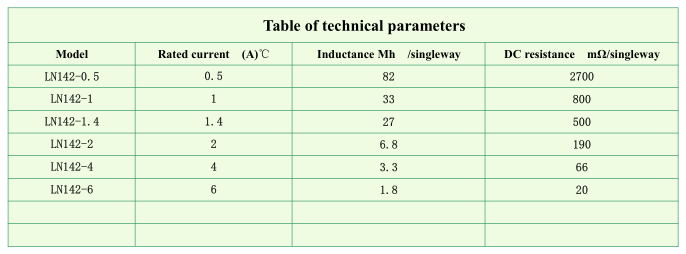

Table of technical parameters:
Specification:
About our factory:
Beijing Yaohuadechang Electronic Co., Ltd was founded in 1992.We are a manufacturer of power transformers, current transformers, voltage transformers, pulse transformers, current sensors and etc. Our factory covers over 12000 square meters. For 23 years experience, our quality and price are best in China. Our product service life can be last for 20 years, and have been CE approved, CQC and RoHS certified. Welcome your inquiry, please feel free to contact me:
Contact us if you need more details on Ac Common Mode Choke. We are ready to answer your questions on packaging, logistics, certification or any
Other aspects about Common Mode Choke、Choke Coil. If these products fail to match your need, please contact us and we would like to provide relevant information.
